performs the core control and protection functions of a small steam turbine package. The application software is field configurable, allowing it to be configured and modified to meet site-specific requirements. Modbus communications also allow easy interface with a package PLC or plant DCS.

The 2301E-ST has four operating modes:

  • Speed Control

  • Has multiple dynamics flexibility. Will work on pumps or compressors. Has capability for remote 4–20 mA speed reference through  configurable analog input.

  • Isochronous Load Sharing

  • Is compatible with most existing analog load sharing speed control systems. Now with soft load and unload capability.

  • Droop Base Load

  • Adjustable load control using discrete raise and lower contact

  • Isochronous Base Load

  • Provides constant load level operation against a utility bus. The load setting may be fixed orchanged using discrete raise and lower inputs or a remote 4–20 mA input.

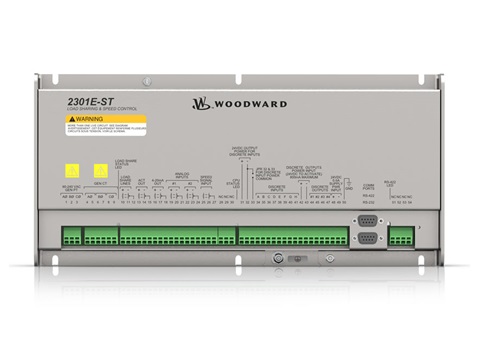

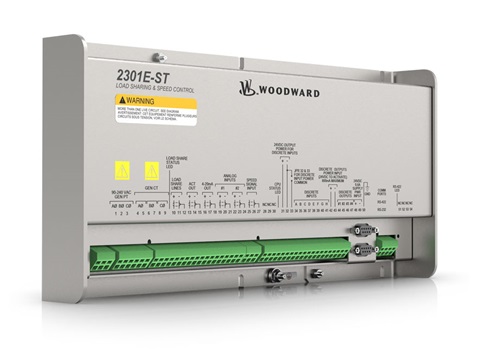

          Part Number: 8273-1013

          2301E Digital Load Sharing and Speed Control for Small Steam Turbines

          Please contact us if you need more information.
          Variants Overview Table
          • Environment

          This combination does not exist.

          Terms and Conditions

          The following functions can be configured, depending on application requirements:

          • Manual, Semi-Automatic or Automatic Start Sequencing

          • Remote Speed Control

          • Isochronous Load sharing with soft load / unload transfer

          • Droop Load Control

          • Actuator Feedback Droop Control

          • Synchronizer Bias Signal Input

          • Power sensor Input (CTs, PTs)

          • Process Control

          • Modbus Communications

          • Self-Powered Actuator Option

          The 2301E-ST Hardware includes:

          • 1 Load Sensor

          • 3 PT Inputs, 3 CT Inputs

          • 1 Actuator Driver

          • 2 MPU Speed Sensor

          • 1 Configurable Analog Output

          • 2 Configurable Analog Inputs

          • 8 Discrete (Switch) Inputs

          • 4 Discrete (Relay Driver) Outputs
